Shiplap Pent Shed 162 - Thicker Boards, All T and G
1
2
3
4
5
6
Play Video

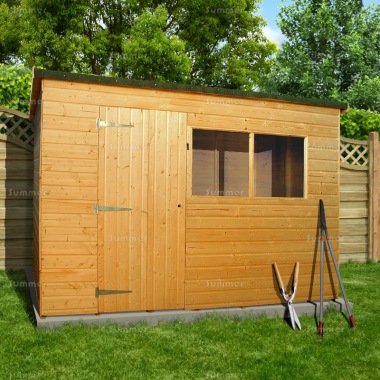

Pictures 1 and 2 show the standard 6'x10' shed with a door in the front wall. Pictures 3 and 4 show the 6'x10' with a door in the end wall and optional preservative treatment.

Summary:

These heavy duty pent roof sheds are available in 5 depths and 6 widths. The depths are 4' (1.2m), 5' (1.5m), 6' (1.8m), 7' (2.1m) or 8' (2.4m). The widths are 6' (1.8m), 7' (2.1m), 8' (2.4m), 10' (3.0m), 12' (3.6m) or 14' (4.2m). Feature includes substantial ex 2" planed framing with thicker than normal 15mm tongued and grooved boards throughout - to the walls, floor and roof. Options include double doors, toughened safety glass, decorative felt tiles and preservative treatment with a choice of 10 different door and window layouts. Instructions are supplied and large prefabricated panels simplify the installation. We offer fitting as a low cost option in many areas.

Back to the Top
  • Individually made to order
  • All timber used in the construction of this shed originates from sustainable forests
  • Scandinavian redwood or whitewood
  • Framed, ledged and braced doors (with horizontal, diagonal and vertical framing)
  • 3 galvanised T hinges per door
  • Rim lock with keys fitted to all single doors
  • 3mm horticultural glass throughout
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved shiplap cladding (finished size after machining)
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved floor boards (finished size after machining)
  • Heavy duty 15mm (ex 3/4") deal tongued and grooved roof boards (finished size after machining)
  • Strong 2" thick planed deal floor joists (45mm x 33mm finished size after machining)
  • Strong 2" thick planed deal framework (45mm x 33mm finished size after machining)
  • Heavy duty green mineral felted roof
  • Door height 5'9" (1750mm)
  • Door width 2'7" (790mm)
  • Internal eaves height at the lowest point inside 5'10" (1800mm)
  • Internal eaves height at the highest point inside 6'6" (1980mm)
  • External ridge height 6'11" (2110mm) on 8' deep sheds
  • External ridge height 6'9" (2060mm) on all other buildings
  • The number of windows varies based on building size and door position

QUALITY CONSTRUCTION: A feature of these quality sheds is the door frame with vertical, horizontal and diagonal framing. The windows are glazed with glass. Many sheds at similar prices include thin styrene glazing which provides little security or weather protection. Another feature is the substantial 2" thick framing, which ensures a more robust and durable building. The boarding is fully interlocked tongued and grooved throughout including the walls, floor and roof.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

THICKER CLADDING: A feature of this heavy duty garden shed is thicker ex 3/4" cladding with a finished thickness of 15mm. The use of thinner cladding with a finished thickness of 12mm is almost universal throughout the industry. These 25% thicker boards are more substantial and longer lasting.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
