Overlap Apex Shed 167 - Boarded Floor and Roof
1
2
Play Video

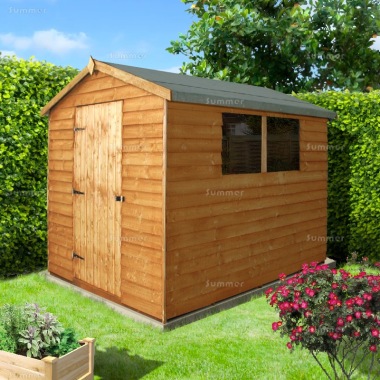

The pictures shows the standard 6'x8' shed with optional bearers under the floor.

Summary:

These sheds are 6'x8' (1.8x2.4m), 6'x10' (1.8x3.0m) or 8'x10' (2.4x3.0m). Taller and stronger than other budget priced DIY sheds, they are traditionally made with large rigid panels. Features include substantial 2" thick timber framing with overlap cladding and a solid wood floor and roof. No man made boards are used. The minimum height is 5'6" at the lowest point inside. The doors are tongued and grooved with ledges and diagonal braces. Preservative treatment is included free. Neat fascias and corner battens ensure an attractive finish. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of this shed originates from sustainable forests
  • Scandinavian redwood or whitewood
  • Preservative treatment inside and out by spraying on all sides with a high quality preservative
  • Traditional construction in large rigid panels, which ensures a neater appearance, greater strength and easier assembly than other budget priced DIY sheds
  • Framed, ledged and braced doors (with horizontal, diagonal and vertical framing)
  • 3 black japanned T hinges
  • Black japanned hasp and staple
  • 6'x8' shed includes 2 non opening windows
  • 6'x10' and 8'x10' sheds include 3 non opening windows
  • Windows glazed with 3mm horticultural glass (no plastic, acrylic, perspex or styrene)
  • Substantial 2" thick sawn framework (50mm x 22mm)
  • 9mm thick deal overlap wall cladding
  • 9mm thick deal butt jointed sawn timber floor boards
  • 9mm thick deal butt jointed sawn timber roof boards
  • Solid timber throughout with durable timber boarded floor and roof
  • All timber construction with no chipboard, plywood, OSB or other man made boards or sheet materials
  • Heavy duty green mineral felted roof
  • Door height 5'4" (1625mm)
  • Door width 2'6" or 760mm (6'x8' and 6'x10' sheds)
  • Door width 2'11" or 900mm (8'x10' shed)
  • Internal eaves height at the lowest point inside 5'6" or 1680mm (all sizes)
  • Ridge height 6'11" or 2100mm (6'x8' and 6'x10' sheds)
  • Ridge height 7'3" or 2200mm (8'x10' shed)

QUALITY CONSTRUCTION: A feature of these quality sheds is the door frame with vertical, horizontal and diagonal framing. Another feature is the substantial framing, which ensures a more robust and durable building. No man made boards are used.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
