Wooden Gazebo 509 - Hipped Roof, Felt Tiles
1
2
Play Video

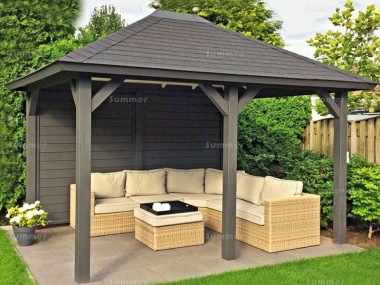

The picture shows the 11'10" wide x 9'10" long gazebo (3.6x3.0m) with optional colour painted finish. Picture 2 shows the optional paint colours available.

Summary:

These quality wooden gazebos are available between 10' to 20' wide (3.0m to 6.0m) and either 8' or 10' deep (2.4m or 3.0m). The sizes range from approximately 10'x8' to 20'x10'. Quality features include substantial 5"x5" posts (120x120mm) and a fully boarded rear wall in a choice of 28mm or 45mm wall logs. One or two fully boarded side walls are available as an option. The hipped roof features heavy duty timber supports with 19mm thick tongued and grooved boards. The price includes decorative felt tiles in a choice of colours. A heavy duty timber floor is available as an option with durable larch decking boards. These luxury gazebos are ideal for use as a hot tub cover or smoking shelter. Instructions are supplied for self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of this gazebo originates from sustainable forests
  • Suitable as a smoking shelter
  • Possible use as a hot tub cover
  • Fully boarded rear wall with a choice of 28mm or 45mm thick tongued and grooved wall logs
  • Strong 120mm x 120mm posts with angled braces
  • All gazebos include 6 posts
  • The roof is supplied unassembled with the rafters and roof boards cut to size
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Powder coated metal ridge cover with a decorative chrome finial ball
  • Decorative mineral felt tiles included in a choice of colours
  • Eaves height approximately 7'1" (2150mm)
  • Ridge height approximately 8'10" or 2700mm (2.4m deep gazebos)
  • Ridge height approximately 9'10" or 3000mm (3.0m deep gazebos)
  • External roof overhang 12" to all sides (300mm)
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the fully boarded rear wall. The length refers to the side walls. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. All sizes are approximate.
