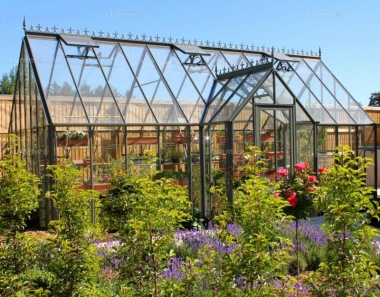

Large Aluminium Orangery 740 - Valley Roof, Box Section

• Decorative roof design with 2 roof valleys and T shape ridge
• Traditional appearance with steep Victorian style 45 degrees roof pitch
• Glass to ground walls
• 4mm toughened glass to BS6206 Class A as standard
• Substantial aluminium frame with a 10 year guarantee
• Box section aluminium ridge and glazing bars
• Neat glazing with external capping (no wire clips)
• Full height glass where practical with no unsightly glass overlaps
• Kick panels with small glass panes at low level which are cheaper and easier to replace if broken
• Structural cills included - separate base plinth not required
• Integral gutter and downpipe to each side
• Low threshold doorway for easy access
• Half boarded single hinged door with key lock
• Inward opening door
• Decorative powder coated aluminium spandrels at the ridge and eaves
• Roof vents are fitted as standard with automatic openers which react to heat to ensure that in hot weather the window ventilates in your absence
• 3 free roof vents and 2 low level louvre vents included with 14'8"x8'8" greenhouse
• 5 free roof vents and 4 low level louvre vents included with 14'8"x16'9" greenhouse
• 7 free roof vents and 6 low level louvre vents included with 14'8"x24'11" greenhouse
• 9 free roof vents and 8 low level louvre vents included with 14'8"x33'0" greenhouse
• Eaves height 5'6" (1692mm)
• Ridge height (front entrance porch) 9'0" (2736mm)
• Ridge height (greenhouse) 11'8" (3558mm)
• Overall depth of side wall including porch 14'8" (4459mm)
• Depth of side wall excluding porch 11'7" (3536mm)
• Front entrance porch 6'5" wide (1968mm)
• Door height 6'6" (1979mm)
• Door width 2'8" (818mm)

THIS PREMIUM QUALITY GREENHOUSE: These high quality premium greenhouses are not only stronger than basic greenhouses but also taller and more comfortable with easy access and ample ventilation. This quality greenhouse includes toughened safety glass throughout, large pane glazing, extra eaves height and lockable doors with low thresholds for easy access. The box section aluminium frame provides additional strength and rigidity. Other standard features include free gutters with downpipes and stop ends and PVC bar capping to provide an attractive finish. The sophisticated design features concealed fixings and weatherproof doors and roof vents. Options include ornate ridge crests and attractive built in aluminium staging and shelving.

POWDER COATED ALUMINIUM: The powder coated finish is more attractive than the stark silver finish aluminium greenhouses. The tough finish also has excellent weathering properties and retains its gloss and colour superbly. A good example of powder coating is the finish on your washing machine. Powder coated aluminium greenhouses have a similar finish.

TOUGHENED GLASS: Toughened glass is the best glazing material for use in greenhouses. It is around 6 times stronger than normal glass so it is less likely to break and when it does break toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly. Toughened glass also strengthens the frame and it is heavy which helps to resist wind. Although size limits apply, toughened glass panes are longer than horticultural glass, with no overlapping glass and fewer joins. Where required, joins are neat in-line H-profile joins. All glass supplied is 4mm thick toughened safety glass to BS6206 Class A.

BAR CAPPING: Traditionally greenhouse glass is secured in aluminium greenhouses using stainless steel or galvanised glazing clips. Bar capping is an effective alternative which is at least as strong as clips but neater and easier to clean. The standard glazing clips are replaced with full length strips which hold the glass along its entire length. Bar capping cannot be fitted in a greenhouse with overlapping glass. This quality feature is only available with large pane glazing. Bar capping is coloured to match the greenhouse frames.

STRUCTURAL CILLS: This greenhouse includes low profile structural cills. A separate base plinth is not required. Structural cills are designed to suit a low threshold doorway. They are stronger than normal greenhouse cills with a lower profile than a traditional base plinth. Structural cills feature a flat underside to spread the weight of the greenhouse over a larger area. They can be placed on concrete, paving slabs, bricks or decking but structural cills should not be placed on soil or gravel.

GREENHOUSE LOCATION: Ideally your greenhouse should have a clear space at least 18" wide on all sides, if possible. This ensures easy access for both installation and future maintenance. In reality this is often not practical and at many sites it is not needed. A reduced clearance is often possible on one or two sides. You should cut back or remove any nearby shrubs and trees. Remember to allow for future growth. Ideally the ridge of a greenhouse should run from east to west. The best position for a freestanding greenhouse is a sunny spot outside the shadow of nearby buildings and trees. A sheltered position is best otherwise additional screening may be advisable. Plants need plenty of water so your greenhouse should be close to a water supply and the site should be well drained.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the overall depth including the front projection. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. All sizes are approximate.

• Widths over 33'0" in approximately 8' increments (prices on request)
• Powder coated finish in a choice of colours
• Ridge crests and finials - length and colour to suit the greenhouse
• 35" wide staging - length and colour to suit the greenhouse
• 25" wide staging - length and colour to suit the greenhouse
• 11" wide high level shelving - length and colour to suit the greenhouse
• Additional roof vents with automatic openers
• Louvred vents
• Automatic louvre openers
• Additional doors
• Internal partitions
• Potting trays
• Seed trays
• Cedar cold frames
• Attractive wooden slatted water butts
• Propagators
• Electric and gas heaters
• Automatic watering systems
• Thermometers and soil gauges
• Hanging basket brackets

VENTILATION: Improved ventilation increases the air circulation through the greenhouse for better growing results. Automatic openers react to heat which ensures that in hot weather the vents open in your absence and then close again when its cooler. Louvred ventilators provide a healthy air flow through the greenhouse to ensure improved growing conditions and better crops. Vents are an integral part of the greenhouse so it is easier to fit extra vents at the outset. Some plants such as alpines require more ventilation than others. If you are not yet sure which plants you are likely to grow improved ventilation will give you more versatility.

BUILT IN ALUMINIUM STAGING: Our built in aluminium staging provides a useful work surface and additional growing space in your greenhouse. It is bolted to the greenhouse frame and adjustable to any height. There are no legs below the staging, which gives you more flexible storage space. The staging is made to the same lengths as the internal back wall to ensure a neat fit when a full length staging is specified. For this reason the actual length of the staging may be slightly less than the nominal lengths listed. If the staging is fitted to the back wall this leaves the other sides free for growing taller plants such as tomatoes.

BUILT IN SLATTED SHELVING: The built in slatted shelving matches the staging although it is not as wide. It is fixed to the greenhouse frames and provides extra growing space or useful extra storage. The shelving is adjustable to any height but it is often fitted at a higher level than the staging. Often the shelving is fitted above the staging where it provides handy storage at your fingertips directly above the main growing area. The shelving can also be fitted at waist height for use as narrow staging. The shelving is made to the same lengths as the internal back wall to ensure a neat fit when a full length shelving is specified. For this reason the actual length of the shelving may be slightly less than the nominal lengths listed.

HEATERS: We offer a huge range of heaters so whatever your specific requirements we have a heater to do the job. Our electric heaters require a standard domestic 13 amp electricity supply. Our propane gas heaters require permanent trickle ventilation when in use. As an approximate guide, a 3kw heater will heat a greenhouse up to 8'x12' or provide frost protection only up to 10'x15' in normal site conditions. A 1.5kw heater will normally heat a greenhouse up to 6'x8' or provide frost protection only up to 6'x12'. Internal partitions are often used in large greenhouses to create a smaller warm room which is cheaper and easier to heat.

HEATING REQUIREMENTS: Heating requirements vary for several reasons. Location is one factor with more heating required in Scotland than in southern England and less heating required in a sheltered position. The design is also a factor. For example, dwarf walls improve the insulation and lean to greenhouses absorb warmth from the existing wall. Another factor is the materials used. Polycarbonate greenhouses retain heat better than glass and wooden greenhouses retain heat better than metal greenhouses. We recommend you to buy a bigger heater than you need - you can always turn it down.

RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these 100% recycled polypropylene pavers simply click together with no fixings needed. The interlocking design ensures greater rigidity. Designed to spread weight, our plastic bases are self draining and fully relocatable, unlike paving or concrete. A fully paved base has no soil inside the greenhouse. Alternatively, a perimeter base features a single row of pavers laid around the perimeter of the greenhouse with soil inside. You can also add a footpath in the centre of a perimeter base. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.

ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We supply exactly the same eco-grids for use in driveways and carparks. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. The kits include weed control membrane which is laid below the pavers. Extensive preparation is not normally required. First the ground is levelled and then the membrane is laid directly on the soil. The pavers are laid on the membrane or on a thin layer of sand or pea shingle. The pavers should be backfilled with gravel or pea shingle which is not supplied. Approximately 15-20kg of shingle is required per paver. We recommend checking this with your supplier or, if you can, buy less gravel than you need to start with.

ECO-PAVING KITS - BASES, FLOORS AND FOOTPATHS: This durable floor kit is a practical and affordable alternative to slabs or concrete. Easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The pavers are easily prised apart so the floor is even quicker to remove if required. Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily laid over an existing hard surface. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. The kits include weed control membrane which can be laid below the pavers. Each paver should be fully supported. Eco-pavers can be used to build a perimeter base but care is required to provide a solid sub-base. Ideally the sub-base should be concrete or a similar hard surface.

The Eco-paving internal floor sometimes fits comfortably inside the greenhouse with a few inches to spare. Sometimes it is overlength but it can be cut to fit. The finished floor is self draining and suitable for wheelbarrows and wheelchairs. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. Each paver should be fully supported.

A durable Eco-paving footpath is inexpensive and easy to install inside any greenhouse. The footpath is normally laid inside the greenhouse after the assembly is completed. The kit sometimes fits comfortably inside the greenhouse with a few inches to spare. Sometimes it is overlength but it can be cut to fit. Designed to spread weight, the finished floor or footpath is self draining and suitable for wheelbarrows. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. Each paver should be fully supported.
