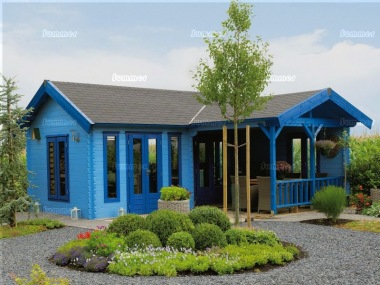

Two Room Clocktower Log Cabin 477 - L Shape, Felt Tiles
- All timber used in the construction of these log cabins originates from sustainable forests
- These log cabins are untreated as standard - the pictures show the optional preservative treatments available
- Interlocking 45mm or 70mm thick tongued and grooved wall logs
- Internal partitions
- Strong 19mm thick tongued and grooved roof boards
- As with most log cabins, the roof is supplied unassembled with the rafters and roof boards cut to size
- Substantial tongued and grooved timber floor boards
- Pressure treated floor joists and foundation beams (lifetime preservative treatment)
- Foundation beams for 45mm log cabins ex 3"x3" (70mm x70mm)
- Foundation beams for 70mm log cabins ex 4"x3" (90mm x70mm)
- Floor joists ex 3" x 2" (70mm x 45mm)
- Doors and windows are joinery made with fully profiled timbers and morticed and tenoned joints throughout
- Doors and window glazed with glass (no plastic, acrylic, styrene or perspex)
- Premium double glazed doors and windows with 24mm thick argon filled double glazing units, 16mm air gaps, a 1.1 U value and fitted with rubber weatherstrips to reduce draughts
- Panoramic low level glazing
- Modern large pane glazing style
- 2 sets of double hinged doors, fully glazed with high security mortice lock and lever handles
- Double door width 4'0" (1210mm)
- Double door height 6'4" (1935mm)
- Durable aluminium door threshold
- Internal skirting boards
- Single hinged fully boarded internal door
- Internal door width 2'6" (770mm)
- Internal door height 6'4" (1935mm)
- 4 double opening windows each with 2 outward opening side hinged sashes
- Window width 4'0" (1210mm)
- Window height 5'0" (1530mm)
- 4 non opening front sidelight windows
- Sidelight window width 1'1" (340mm)
- Sidelight window height 5'0" (1530mm)
- Decorative mineral felt tiles in a choice of colours included as standard
- Decorative balustrade panels
- Strong 120mm x 120mm posts with angled braces
- Weatherproof L-shaped double fascia boards on gable ends
- External roof overhang approximately 12" to all sides (300mm)
- First internal room approximate internal size 9'5" deep x 9'5" wide (2860mm x 2860mm)
- Second internal room approximate internal size 6'9" deep x 9'5" wide (2060mm x 2860mm)
- Canopy approximate internal size 12'0" deep x 9'5" wide (3660mm x 2860mm)
- Eaves height 8'2" (2500mm)
- Ridge height 11'4" (3450mm)
- Front projection approximately 12'6" deep x 9'10" wide (3800mm x 3000mm)
- Overall depth 19'8" (6000mm)
- Overall width 19'8" (6000mm)
- External cabin sizes do not include the interlocking log corners
- Internal cabin sizes - subtract 90mm if the logs are 45mm thick, subtract 140mm if the logs are 70mm thick
LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.
NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.
NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.
FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.
JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.
HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.
DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.
HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.
PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor. If required a timber or concrete floor can be laid inside after the walls and roof have been fitted.
LOW LEVEL GLAZING: Low level glazing provides a panoramic view from inside your garden room so you can appreciate your garden fully. With low level glazing you can enjoy a better view of the garden, especially at sites where the garden slopes away.
DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the overall depth including the front projection. The width refers to the front and rear walls including the door wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
- A choice of 45mm or 70mm thick tongued and grooved wall logs
- Choice of felt tile colours
- Choice of brass or chrome plated door and window handles
- Factory finished translucent wood stain treatment in a choice of one colour or two colours with the doors and windows being painted a different colour to the wall logs and roof
- Pressure treated timber in a green or brown finish and with a choice of unpainted or factory finished doors and windows
- Microporous preservatives delivered only
- Recycled plastic base kits
- A choice of composite decking kits
- Floor insulation - Sufficient insulation is provided to insulate the cabin floor but not the canopy area, which has no floor
- Roof insulation - Sufficient insulation is provided to cover the entire roof, including the canopy
TRANSLUCENT WOOD STAIN TREATMENT - FACTORY FINISHED: This high quality preservative finish is professionally spray applied in the factory to both sides of the timber. The cabin is treated inside and out in a choice of colours. You can choose one or two of our colours. The doors and windows can be sprayed the same colour as the wall logs and roof or painted a different colour. Treatment of the roof includes the rafters and boards. Microporous woodstains offer superior protection plus greater durability. Microporous woodstains are impervious to water but not to water vapour, which allows the wood to breathe. The appearance of colours and shades may vary between different screens or devices.
PRESSURE TREATED TIMBER: Pressure treated wall logs and roof timbers with a choice of a green or brown finish. The doors and windows can be supplied unpainted or factory finished with a semi opaque microporous paint treatment. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. Pressure treated or tanalised wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
UNDERFLOOR INSULATION: The underfloor insulation is designed to suit our timber floor. The rigid insulation boards are suspended between the floor joists and above the ground. The top face of the insulation is just below the floorboards. The solidity of the floor is unaffected by this design. The internal appearance is also unchanged with attractive and durable tongued and grooved boards. Detailed instructions are supplied. It is 25mm thick to ensure ample clearance above the ground, which optimizes the performance of the insulation.
ROOF INSULATION: The roof insulation is laid over the roof boards and below the roofing felt. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards visible inside. No internal lining boards are required. The roof insulation kit includes rigid foam boards which are lightweight and easy to install. Longer felt nails are included for fixing the roofing felt or felt tiles through the insulation. Detailed instructions are supplied. The roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement. The roof insulation increases the ridge height by approximately 50mm which may be of critical importance if you need to keep the overall height below 2.5m for planning purposes.
RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Weed membranes are not needed below a timber floor. The self draining design prolongs the life of a timber floor. Unlike paving or concrete our plastic bases are fully relocatable. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.
ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We offer exactly the same eco-grids as driveways and carparks. Gravel or shingle infill is not required below a timber floor. Whatever you store in your building, our eco-grids will support the weight easily. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. Extensive preparation is not normally required - just level the soil and lay the pavers directly on soil or on a thin layer of sand or pea shingle. Any exposed edges around the base can be left unfilled or filled with gravel or shingle.
ECO-PAVING BASE KITS: Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily easily laid over an existing hard surface.
WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.
Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.
BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your log cabin or on the roof. Our solar internal lights solve the problem of seeing inside your log cabin at night. Our solar security lights illuminate the approach to your log cabin at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.
- Delivery is normally between 10 and 12 weeks after order.
- Pressure treated log cabins may be a week or two longer.
- Our log cabin prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
FREE CRANE OFFLOAD: The delivery lorry normally includes a crane to unload your log cabin quickly and easily without assistance. There is normally one pack which is unloaded on the drive or verge at the front of your property. Pack sizes vary from around 3.5m long for a small cabin to 5.5m long for a larger cabin. The packs are polythene wrapped and securely strapped while in transit but after the pack is opened the individual components are easy to carry. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
RESTRICTED ACCESS: The delivery vehicle is a large lorry, typically around 50' or 15m long and 9' or 2.7m wide, which is unloaded from the side. If there is no suitable unloading area at your property the driver can park several hundred yards away and carry the cabin with the forklift. The fork lift can carry the cabin sideways or end on so it can carry a long pack up a narrow lane. Although the tyres are all terrain the fork lift requires a firm and flat route from the parking area to your property with no steps or steep slopes. With advance warning we can normally overcome most access restrictions, often at no extra cost. Please contact us if you have any concerns regarding the access at your site.
DELIVERY TO SCOTLAND: Although southern Scotland is inside our normal delivery area we can also deliver to other parts of Scotland. The delivery period may be a week or two longer and there may be additional delivery costs. Please phone 01603 721590 for further details.
- All log cabin prices include VAT.
- Pay only 30% deposit when you order this log cabin by phone or online.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
- Low cost installation available in many areas
- Pay separately on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have connected thousands of customers to our unique network of independent fitters and baselayers. Specialist teams have offered to install our buildings or lay bases in many areas at low fixed rates in return for recurring work. The prices are offered within a specific area and subject to conditions. You deal direct with the fitter or baselayer which keeps the prices low and you pay them separately on completion. We make no commission except for a small upfront referral fee. The fitters and baselayers pay us nothing and we pay them nothing. Although we do not manage or supervise the work directly we listen carefully to feedback and any team who provides a poor service is removed from our network. For decades this effective system has provided a low cost option for our customers with high levels of satisfaction.
LOW PRICES FOR BASELAYING AND INSTALLATION: Low cost fitters and baselayers are available in many areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. All of the specialist teams available in your area are listed alongside the building prices. To see their prices and conditions just click on the blue "i" symbol next to each team. To order online just add your chosen fitter or baselayer to your shopping basket before you proceed to the checkout.
NO FITTERS IN YOUR AREA? If you cannot see any fitters or baselayers in your area please contact us. We can often obtain a competitive quote from a team who is willing to travel a bit further. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us.
FITTERS & BASELAYERS REQUIRED - REGISTER FREE: Give your business a boost - we can put you in touch with customers in your local area! We need more fitters and base layers in all areas across England, Scotland and Wales. Register now - its free! It only takes a few minutes to register. Just CLICK HERE to apply online.
Please scroll down to see customer reviews about this product. All reviews are genuine unsolicited emails from customers after they purchased this product from us. Click here to see more customer reviews of all products.
That's great, thanks for doing that and for the telephone advice on construction - very much appreciated.
Ian, Ash Green, Aldershot, GU12, 20x20 Log Cabin 477, 24th January 2017
EXTRA NOTE:- THE CUSTOMER REQUESTED A DUPLICATE VAT INVOICE 5 MONTHS AFTER DELIVERY
